BURG-WÄCHTER ZS 77 H AUTOMATIC CYLINDER

https://besa-sloten.be/web/image/product.template/10094/image_1920?unique=3a6fd23
15.290000000000001 EUR 15.290000000000001

18.50 € 18.50 €

15.29 € 15.29 € excl. VAT

On order

15.29 € VAT Excluded

PRICE ON REQUEST

  • Outer diameter Ø (mm)
  • Inner diameter Ø (mm)
  • Distance of flat sides (mm)
  • Distance from housing to lip (mm)
  • Type of closure

Deze combinatie bestaat niet.

CONTACT US FOR YOUR PRICE
Outer diameter Ø (mm): Ø 20
Inner diameter Ø (mm): Ø 16.4
Distance of flat sides (mm): 13.4
Distance from housing to lip (mm): 16
Type of closure: Keyed different (KD)


Article number: ZS 77 H
Bar code: 4003482030806

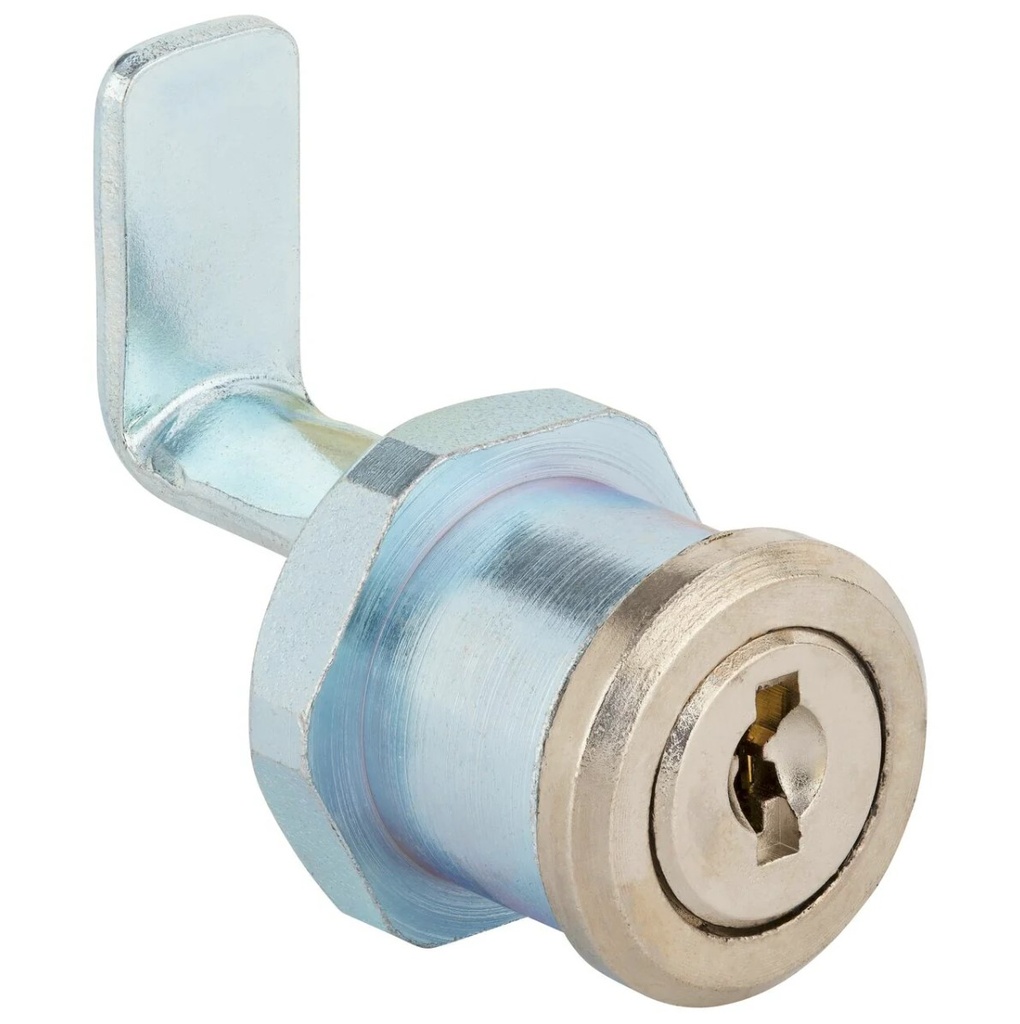

UNIVERSAL CYLINDER ZS 77 H

The BURG-WÄCHTER universal cylinder ZS 77 H is made of high-strength and additionally nickel-plated die-cast zinc. The cylinder can be used in many areas. For example, for doors of all kinds or applications in industry.Opening and closing the disc cylinder is particularly easy with the aid of one of the two reversible keys supplied. The bolt can be adjusted at a 90-degree angle.

THE SUITABLE CYLINDER FOR 11-18.8 MM MATERIAL THICKNESS

The universal cylinder ZS 77 H is designed for a material thickness of 11-18.8 mm and can therefore be used extremely flexibly. When assembling, fix the cylinder securely with a fastening nut.During installation, make sure that the key remains in the lock until after installation is complete.

1. Technical data sheet for letterbox cylinder ZS 77 H from BURG-WÄCHTER:

It is very important to maintain your lock properly, especially if it is exposed to the elements of nature a lot. Dirt and corrosion can build up, especially during cold and inclement weather. Therefore, we recommend lubricating your door lock at least twice a year or ideally at every seasonal change.
To make sure your lock runs smoothly again, we recommend using lubricants such asWD-40 WHITE LITHIUM SPRAY GREASE. The correct use of these oils is essential.

​In general, there are two solutions for lock maintenance: prevention/protection and troubleshooting.

If a lock is difficult to open, it could be due to two reasons:
​
​1. The key and lock are not yet properly matched, this is common with a new lock

​​2. There is dirt build-up or rust in the lock

In these cases, we recommend using WD-40 WHITE LITHIUM SPRAY GREASE to solve the problem. This will prevent rust from forming in the lock. However, it is important that you apply the oil in the right place in the lock so that the WD-40 gets to the moving parts to ensure proper lubrication.
