  2. OMEC 120L ALUMINIUM BASE CYLINDER

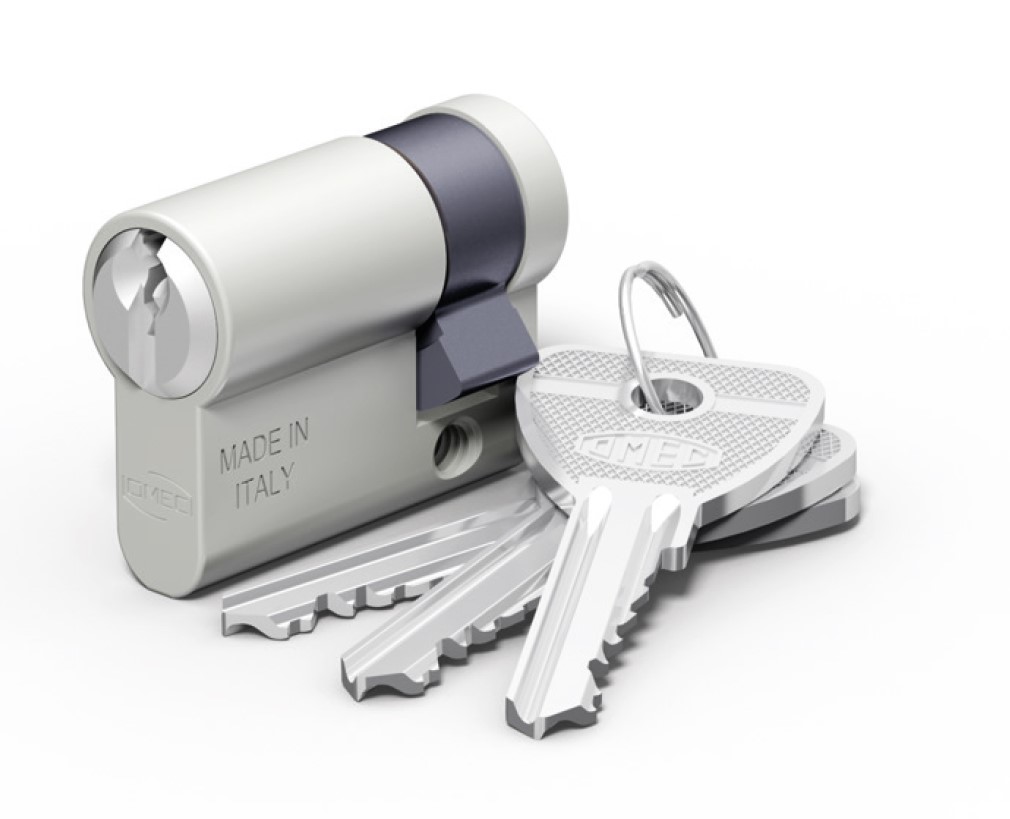

OMEC 120L ALUMINIUM BASE CYLINDER

https://besa-sloten.be/web/image/product.template/2403/image_1920?unique=67c49dc
(0 beoordeling)

3 Keys included

17.32 EUR 17.32

20.96 € 20.96 €

17.32 € 17.32 € excl. VAT

Stock: 21.00 Units
Location(s): K/-1-X2.4

17.32 € VAT Excluded

PRICE ON REQUEST

  • Model
  • Outside dimensions A (mm)
  • Inside dimensions B (mm)
  • Certification
  • Type of closure
  • Category

Deze combinatie bestaat niet.

CONTACT US FOR YOUR PRICE


Article number: 121/01 L
Barcode: 8050849063768

OPTIONS AVAILABLE

Jouw Dynamic Snippet wordt hier weergegeven ... Dit bericht wordt weergegeven omdat je niet zowel een filter als een sjabloon hebt opgegeven om te gebruiken.
PROFILE CYLINDER WITH SPECIAL ALUMINIUM AND STAINLESS STEEL ALLOY
Light and resistant at the same time. Designed, tested and certified according to UNI EN 1303:2015

FEATURES

  Cylinder housing made of special aluminium alloy for improved                         corrosion resistance

  Includes 3 standard keys

  5 stainless steel pins for extra durability

  Picklock-resistant design

  Easy key access thanks to notch

  Pressure-resistant DIN cam 30°

  Tested on salt spray for 96 hours

  Durability grade 6 = 100,000 cycles

  Key security grade 2 = more than 5,000 combinations

ALUMINIUM

THE METAL OF THE FUTURE

ALUMINIUM IS STRONG AND GREEN
AN EXTREMELY VERSATILE AND FULLY RECYCLABLE MATERIAL
Instead of traditional brass cylinder bodies, which are then nickel-plated for a satin silver finish, we have introduced aluminium as a substitute for brass. This allows us to produce a completely nickel-free and stronger cylinder body.
We choose aluminium for its extraordinary properties - it is lightweight, resistant to corrosion, durable and at the same time environmentally friendly. This allows us to contribute to a smarter and more sustainable future. Aluminium has a life cycle that few other metals can match: it offers excellent corrosion resistance and can be recycled again and again, requiring only a fraction of the original energy to produce it.
​
STRENGTHENED STRENGTH: THE EVOLUTION OF SUSTAINABILITY
We have identified a special aluminium alloy that is 60% stronger than standard aluminium. In addition, an innovative, patented ceramic anodisation treatment makes the aluminium even more resistant, durable and stronger than traditional brass

MADE IN ITALY
Experience Italian quality with our 120L aluminium cylinder, produced with innovative technology and meticulous attention to every detail to ensure excellence. All our products are individually designed, produced and tested at our factory in Lumezzane.
The entire production process is based on the best and most advanced technologies: the work cycle and assembly are fully automated to respect our strict construction standards.

We test 100% of our products to ensure the mechanical and aesthetic quality of each cylinder.

CERTIFIED PRODUCT

​ UNI EN 1303:2015

  Technical data sheet for 120L ALUMINIUM DOUBLE CILINDER from OMEC:

  Technical data sheet for 120L ALUMINIUM HALF CILINDER from OMEC:

If you are looking for a cylinder, the correct length of the profile cylinder is very important, it depends on the thickness of the door and the matching door hardware.  Measuring a cylinder lock is not complicated. To measure the length of a cylinder lock, measure from the centre of the profile cylinder, where the fixing screw that secures the cylinder lock is located.

The standard length of a cylinder lock is 60 mm, which is equal to 30 mm on the left-hand side, or outside dimension A, and 30 mm on the right-hand side, or inside dimension B. The length can be extended on both sides by 5 mm.  On thicker doors than 40 mm, the lock is often not in the centre of the door, so the length of the cylinder lock must be adjusted accordingly.

Therefore, for example, if you measure the length 45 mm on the outside dimension A and measure the length 50 mm on the inside dimension B, you will have a cylinder of size 45/50.  If, with this same profile cylinder, you want a knob on the inner sides, this becomes a cylinder 45/50 knob or 45/50K for short.

More info on the size of a cylinder can be found on our info page: CYLINDERS

To ensure correct installation of this cylinder, we recommend maintaining the following steps:

  1. Do not use force or brute force when fitting the cylinder.
  2. The cylinder should also not protrude more than 3mm for safety reasons.
  3. To ensure longer cylinder life, we recommend regular lubrication with oil. Note: do not use graphite to avoid tarnishing! To ensure smooth operation of the cylinder and avoid clogging from dirt, we recommend lubricating the cylinder every seasonal change.


To ensure long life of this cylinder, we recommend maintaining the following steps:

  1. Do not turn the key until it is inserted to the end stop.
  2. Do not use damaged keys.
  3. Do not insert foreign objects into the cylinder.
  4. Do not use force to turn the key.
  5. Do not insert both keys into the cylinder at the same time.
  6. Do not pull the door closed with the key.


12345

Specifications

Outside dimensions A (mm) 20 or 23.5 or 27 or 30 or 35 or 40 or 45 or 50 or 55 or 60 or 70
Inside dimensions B (mm) 10 (half cylinder) or 20 or 23.5 or 27 or 30 or 35 or 40 or 45 or 50 or 55 or 60 or 65 or 70 or 75 or 80 or 90
Type of closure Keyed different (KD) or Keyed alike (KA)
Model OMEC 120L
Certification No card
Category Basic cylinder
