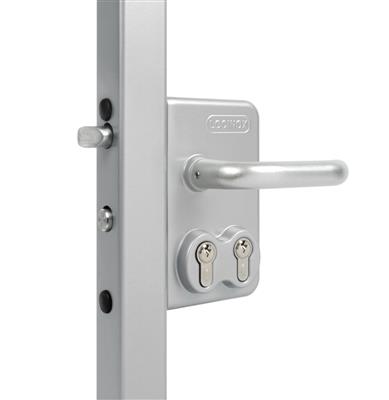

LOCINOX LDKZD1 SURFACE MOUNTED DOUBLE CYLINDER GATE LOCK FOR SWING GATES
| Centres (mm): 60 |
| Backset (mm): 30, 60 |
| Faceplate width (mm): Flat 31 |
| Faceplate length (mm): 160 |
| Fraceplate material: Stainless steel / Inox |
| Direction of rotation: Reversible |
| Lock case: With |
| Lock operation type: Double europrofile cylinder |
| Follower ⧄ (mm): ⧄ 8 |
| Panic function: Without |
High-quality swing gate lock with dual cylinder – for controlled access and maximum security
This premium swing gate lock features a sturdy aluminium housing and a fully stainless steel internal mechanism. With its two cylinders, the lock can be opened or closed by operating just one of them, making it an excellent choice for emergency or waste collection access.
The solid stainless steel night bolt ensures enhanced protection through its 23 mm double-depth locking mechanism. The day latch is key-operated and easily reversible (left/right).
The lock allows for a solid 4-point mounting with 2 hex bolts. For a quick and precise installation, we recommend using the Drill-Fix drilling jig. The KTL/electrostatic dip coating offers excellent corrosion resistance (1000h salt spray test, ISO 9227).
Specifications:
✔ For gate profiles from 10 to 100 mm
✔ Stainless steel interior
✔ Fixed day and night bolt
✔ 23 mm deep double locking of night bolt
✔ Key-operated day latch
✔ Reversible latch (left/right)
✔ Interchangeable with all surface-mounted Locinox gate locks
Available in the following RAL colours
