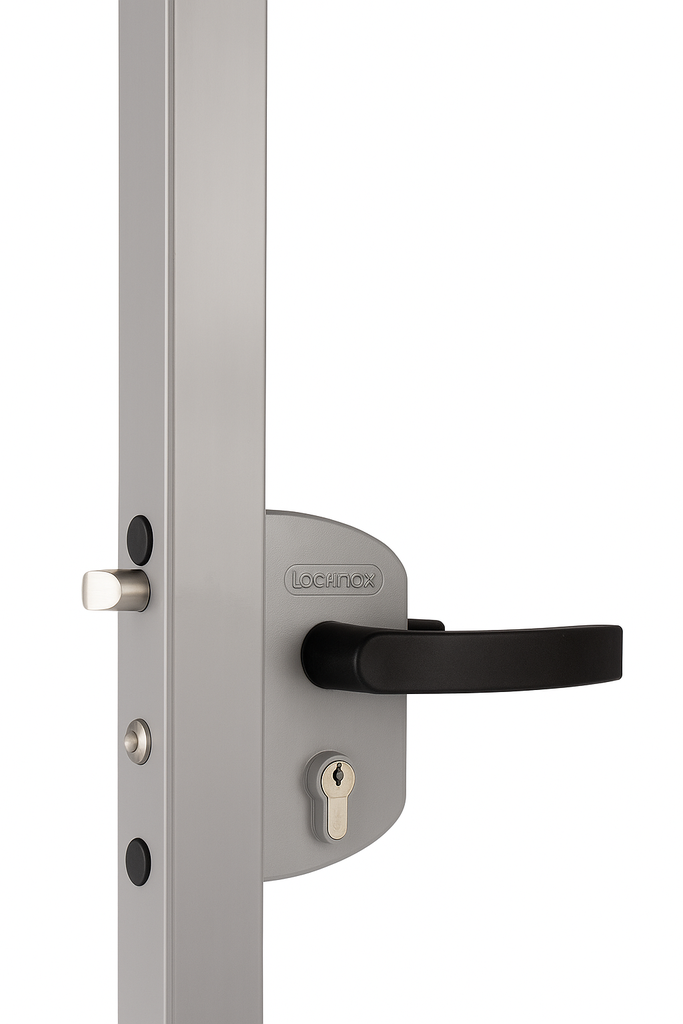

LOCINOX LAKZP1 SURFACE MOUNTED GARDEN GATE LOCK
| Soort poort: Draaipoort |
| Centres (mm): 60 |
| Backset (mm): 30 |
| Faceplate width (mm): Flat 31 |
| Faceplate length (mm): 160 |
| Fraceplate material: Stainless steel / Inox |
| Direction of rotation: Reversible |
| Lock case: With |
| Profile width (mm): 40 |
| Lock operation type: Euro profile cylinder |
| Follower ⧄ (mm): ⧄ 8 |
| Panic function: Without |
Economical Gate Lock for Garden and Pedestrian Gates – 40 mm Profile
This economical gate lock is the go-to solution for garden and pedestrian gates with a 40 mm profile. Its durable polyamide housing and stainless steel interior make it ideal for long-term outdoor use..
The solid stainless steel deadbolt provides a 23 mm deep locking with just one key turn, ensuring secure closure. The latch bolt can be easily reversed for left or right-handed gates. Thanks to the 4-point mounting with two hex bolts, installation is solid and secure. For fast and precise mounting, use the Drill-Fix jig.
Specifications
✔ Fits 40 mm gate profiles
✔ Stainless steel internal mechanism & strong polyamide housing
✔ Solid deadbolt with 23 mm locking depth
✔ Reversible latch bolt (left/right)
✔ 4-point fixing with hex bolts
✔ Bolt center distance: 60 mm
✔ Compatible with all surface-mounted Locinox swing gate locks
✔ No key operation for the latch bolt
Available in the following RAL colours
Features
