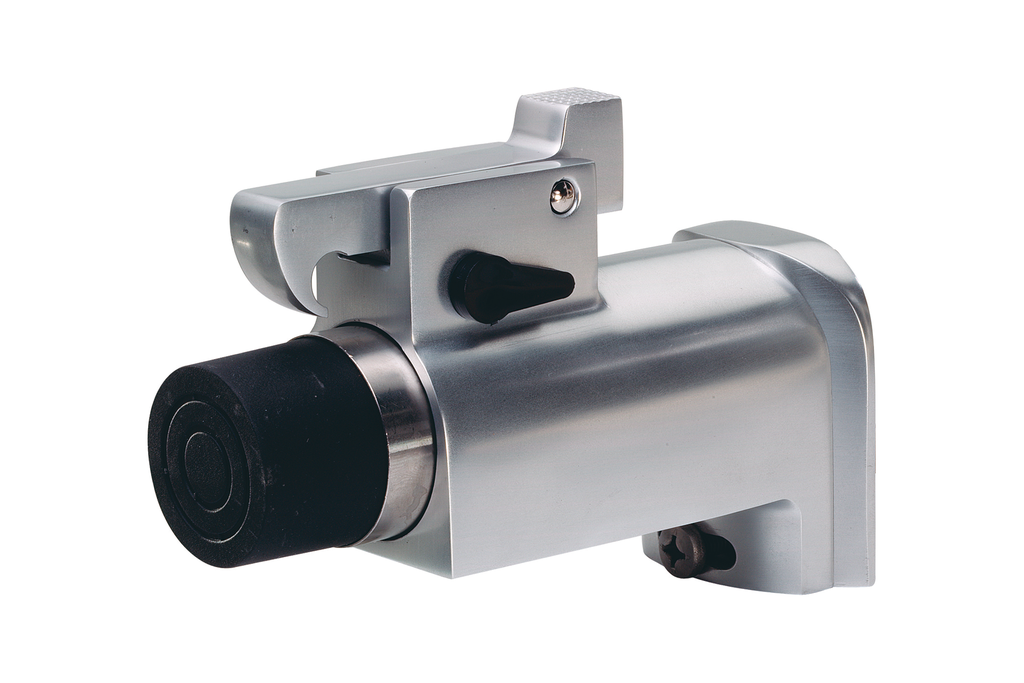

KWS 1095 Door holder with Hook - ± 10° adjustable
With the option to disable the lock function
Adjustable to right and left by ± 10 degrees
Fixing material included
Includes a roller block (steel) for screwing on, at colour F1 - anodised the roller catch block is in stainless steel/Inox
Suitable for use in combination with a door closer
MATERIAL
Aluminium
MODE OF OPERATION
Foot actuation
DOOR WEIGHT
Max. 100 kg
FUNCTION
To hold the door in place, push it against the holder until the hook is engaged on the roller block. Actuating the hook while simultaneously pressing the door against the holder disengages the holding mode.
The lever, switched from position A to B (see product drawing), deactivates the holding mode: In this case, the door holder only has the function of a spring-loaded door buffer.
INSTALLATION
Mount the fixing element with inserted stainless steel fixture on the wall with two screws and plugs at the furthest possible distance from the door hinge. Attach the door holder, incline it accordingly (as it opens, the door should hit the door holder perpendicularly) and then, secure it with a screw. Fix the roller block to the door at the corresponding position.
The door holder can be adjusted perpetually up to 10 degrees to the right and left.
