  2. KWS 1044/1045/1046 DOOR HOLDER WITH THROW

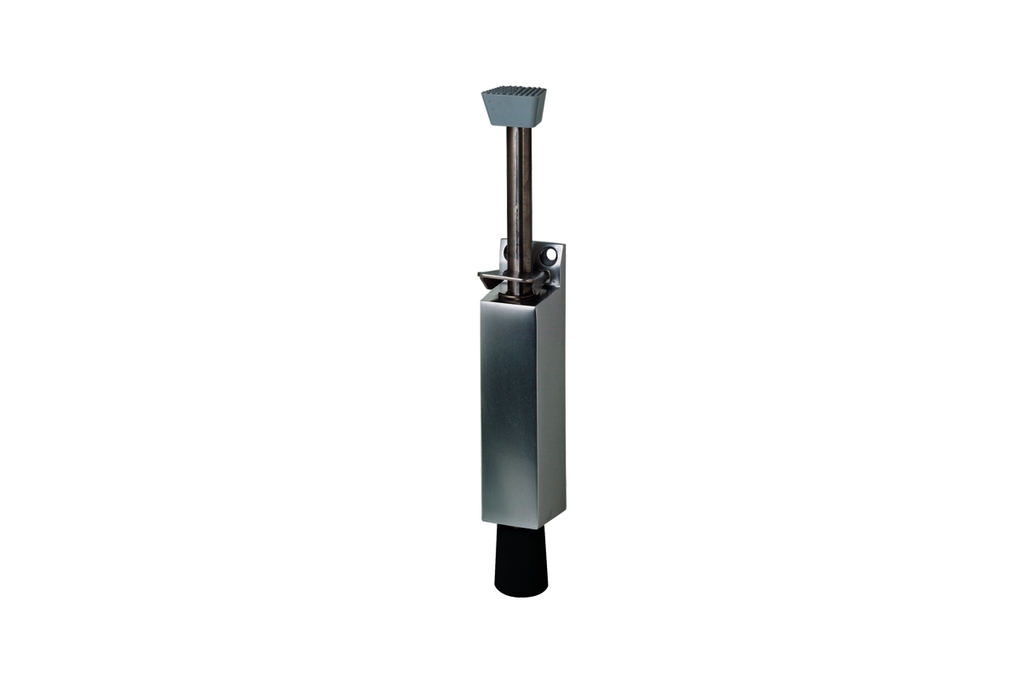

KWS 1044/1045/1046 DOOR HOLDER WITH THROW

https://besa-sloten.be/web/image/product.template/11554/image_1920?unique=5f24fce
(0 beoordeling)
72.10000000000001 EUR 72.10000000000001

87.24 € 87.24 €

72.10 € 72.10 € excl. VAT

Stock: 9.00 Units
Location(s): K/KK-1-A6.1

72.10 € VAT Excluded

PRICE ON REQUEST

  • Category
  • Model
  • Max. door/gate weight (kg)
  • Colour
  • Throw (mm)
  • Material

Deze combinatie bestaat niet.

CONTACT US FOR YOUR PRICE
Category: Door holders
Model: Door assembly
Max. door/gate weight (kg): 80
Material: Aluminium


Article number: 1044.02
Barcode: 4041518132636

OPTIONS AVAILABLE

Jouw Dynamic Snippet wordt hier weergegeven ... Dit bericht wordt weergegeven omdat je niet zowel een filter als een sjabloon hebt opgegeven om te gebruiken.

KWS 1044/1045/1046 Door holder with Throw

  To be screwed

  Assembly instructions and a marking template included

  Suitable for use in combination with a door closer

MATERIAL

Aluminium

MODE OF OPERATION

Foot actuation

DOORWEIGHT

Max. 80 kg

FUNCTION

The door can be held open at any angle.

To hold the door in place, push down the bolt until the foot is being pressed firmly on the floor. Pushing the check plate gently releases the door.

The default hub spring improves the contact pressure applied to the floor.

​

INSTALLATION

Mount the door holder on the door with four screws in combination with a fixing plate at the furthest possible distance from the door hinge. The distance from the bottom edge of the door to the foot should be 5 to 10 mm.

​

REPLACEMENT PARTS

  KWS 9907 RUBBER

Would you like a different colour that better suits your interior?

Contact us and order in your chosen RAL colour. *The surcharge will be determined when ordering

  Technical data sheet for DOOR HOLDER 1044/1045/1046 from KWS:
