OPTIONS AVAILABLE

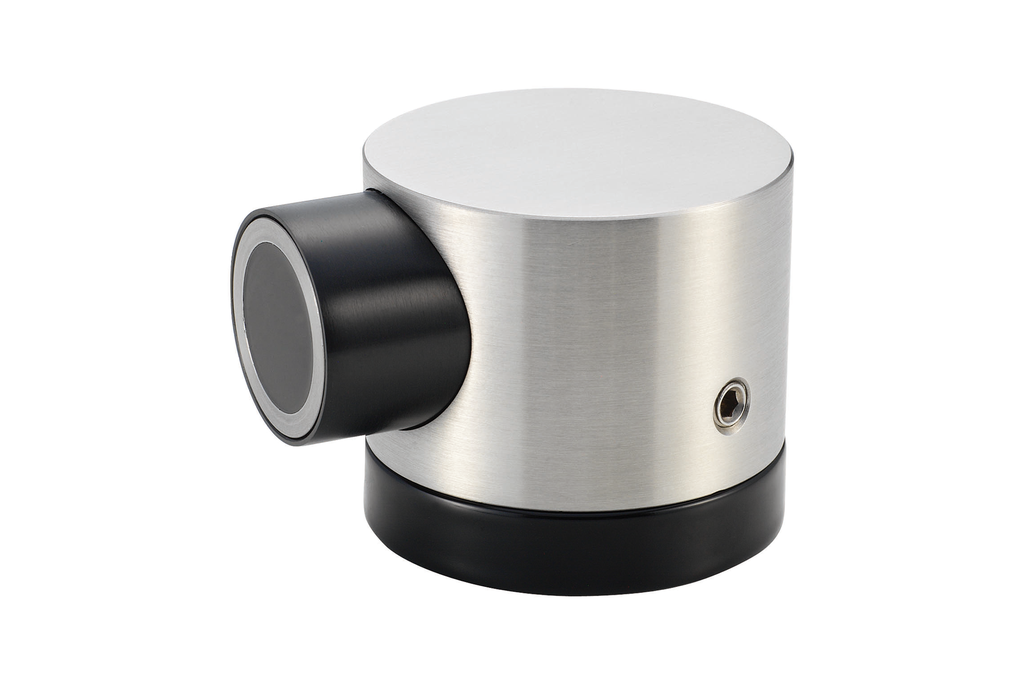

KWS 1015 Door holder with Magnet
Spring-loaded magnet
With shim KWS 1615 (10 mm high)
With mounting material
Suitable for use in combination with a door closer
Suitable for indoor use only
MATERIAL
Aluminium
MODE OF OPERATION
Free actuation (pushing/pulling)
PULL-OFF FORCE
70 N
DOOR WEIGHT
Max. 60 kg
FUNCTION
To hold the door in place, push it against the magnet. The springloaded magnet slows down the door and triggers the mechanism. To release the door, pull it away from the magnet.
INSTALLATION
Insert the two plugs into the floor at the desired arresting point, which should be the furthest possible distance from the door hinge and screw in the M8 x 90 threaded bolts. Then, attach the door holder and fix it with two threaded bolts on the sides. Fix the counter plate to the door at the corresponding position.
REPLACEMENTS PARTS
ALTERNATIVE PRODUCTS
Specifications
| Colour | Silver lacquered or F1 - anodised or Antraciet or Black |
| Category | Door holders, Magnets |
| Model | Floor mounting |
| Pull-off force (N) | 70 |
| Max. door/gate weight (kg) | 60 |
| Material | Aluminium |
