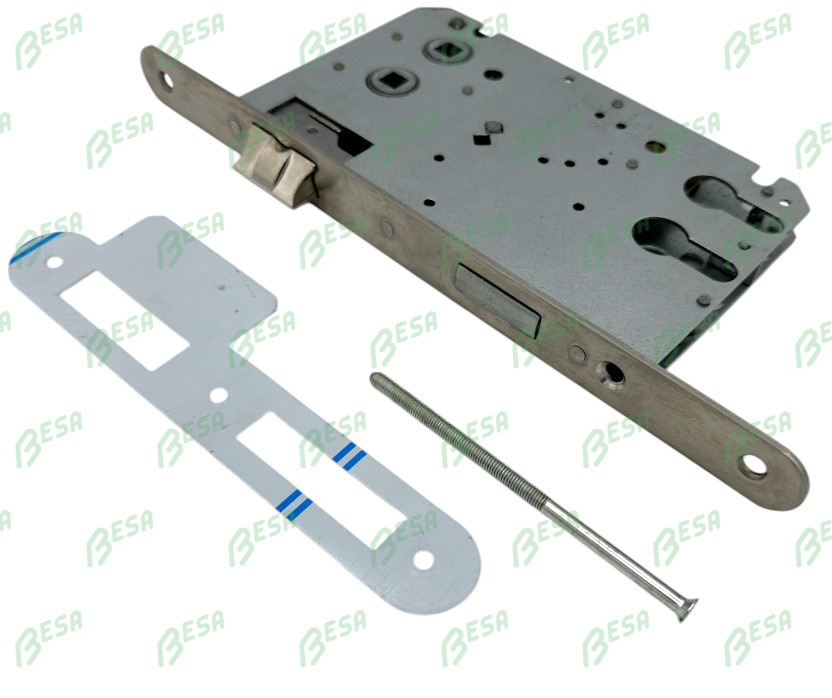

DYLA 607 BRANDWEREND CILINDERSLOT

Stock: 5.00 Units

Location(s): W/WN-A9.2

Centres (mm)
Backset (mm)
Backset (mm)
Width fore-end (mm)
Front plate length (mm)
Shape faceplate
Front plate material
- Lacquered
Direction of rotation
- Reversible
- DIN left = Belgian right
- DIN right = Belgian left
Model
- Cylinder lock
Mounting type
Follower ⧄ (mm)
Type of operation
Type of closure
Self-locking
Panic function
- Without
Latch bolt position (mm)
- Without
Deadbolt lead (mm)
Implementation
- Standard

Deze combinatie bestaat niet.

Article number: 607-50-80-AFG

Barcode: 607-50-80-AFG

Width fore-end (mm)	Flat 22 or Flat 25
Shape faceplate	Rounded or Straigt
Direction of rotation	Reversible or DIN left = Belgian right or DIN right = Belgian left
Centres (mm)	110
Backset (mm)	50, 80
Front plate length (mm)	265
Front plate material	Lacquered
Model	Cylinder lock
Mounting type	Built-in
Follower ⧄ (mm)	⧄ 8
Type of operation	Euro profile cylinder
Type of closure	Bolt
Self-locking	No
Panic function	Without
Latch bolt position (mm)	Without
Deadbolt lead (mm)	Without
Implementation	Standard
