DYLA 172C HAAKSLOT

https://www.besa-sloten.be/web/image/product.template/3537/image_1920?unique=1640831
(0 beoordeling)
55.94 EUR 55.94

67.69 € 67.69 €

55.94 € 55.94 € excl. VAT

Stock: 5.00 Units
Location(s): W/WF-C9.8

48.72 € VAT Excluded

PREIS AUF ANFRAGE

  • Backset (mm)
  • Width fore-end (mm)
  • Front plate length (mm)
  • Shape faceplate
  • Front plate material
  • Direction of rotation
  • Model
  • Mounting type
  • Follower ⧄ (mm)
  • Type of operation
  • Type of closure
  • Self-locking
  • Panic function
  • Latch bolt position (mm)
  • Deadbolt lead (mm)
  • Implementation
  • Locking upwards
  • Hook width (mm)

Deze combinatie bestaat niet.


Article number: 172C-45
Barcode: 172C-45

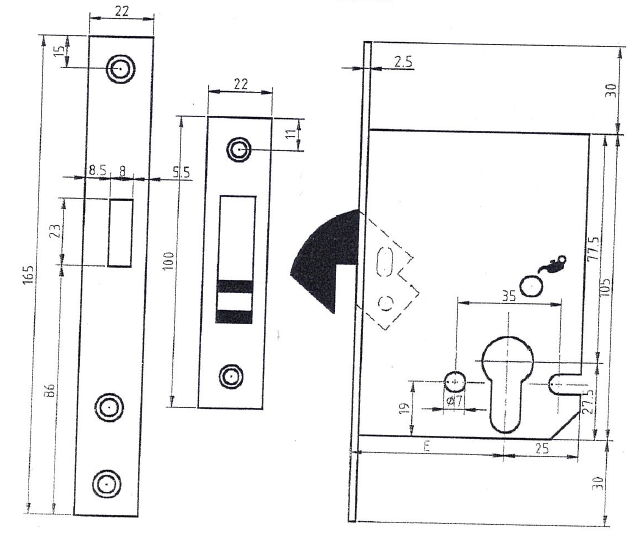

Specifications

Backset (mm) 45 or 50 or 55 or 60 or 70 or 105 or 120
Width fore-end (mm) Flat 22
Front plate length (mm) 165
Shape faceplate Straigt
Front plate material Lacquered
Direction of rotation Reversible
Model Additional or deadbolt lock
Mounting type Built-in
Follower ⧄ (mm) Zonder
Type of operation Euro profile cylinder
Type of closure Hook
Self-locking No
Panic function Without
Latch bolt position (mm) Without
Deadbolt lead (mm) Without
Implementation Standard
Locking upwards Without
Hook width (mm) 8
