MACO lift-and-slide hardware for window doors is designed for sliding window and door elements in timber, PVC, aluminium or steel. This hardware ensures smooth and reliable operation of lift-and-slide windows and balcony doors, allowing the sash to be opened, closed, locked and set in a ventilation position with ease.
This system is suitable for various applications, including sliding, lift-and-slide and, depending on the version, also tilt-slide or parallel-opening window constructions. Thanks to the high-quality combination of steel, cast zinc and aluminium alloys, MACO offers a durable solution for intensive use in modern window and door systems.
The roller carriages with plastic-coated deep-groove ball bearings provide quiet and smooth running. Depending on the version, this lift-and-slide hardware is suitable for sash weights up to 200 kg, 300 kg or 400 kg. The system is prepared for use with a profile cylinder and can be applied in 2- to 4-part lift-and-slide elements.
MACO lift-and-slide hardware is developed with a strong focus on functionality, safety and long service life. Regular maintenance and correct installation with original MACO components are essential to ensure proper performance and durability.
Specifications
✔ Suitable for window doors, balcony doors and lift-and-slide windows
✔ Applicable for timber, PVC, aluminium and steel
✔ For sliding and lift-and-slide window and door elements
✔ Depending on the version, also suitable for tilt-slide and parallel-opening systems
✔ Suitable for 2- to 4-part lift-and-slide elements

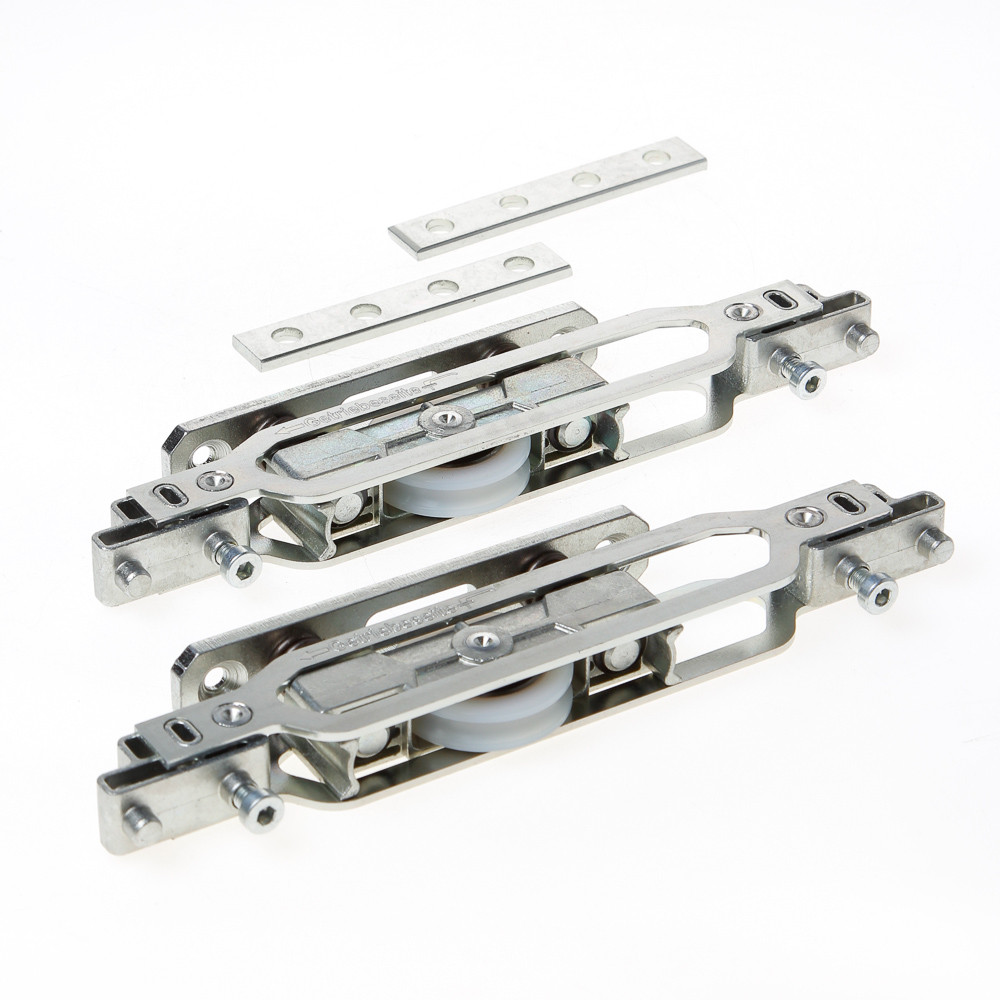

✔ Roller carriages with plastic-coated deep-groove ball bearings
✔ Suitable for sash weights up to 200 kg, 300 kg or 400 kg
✔ Suitable for sash thicknesses from 56 to 110 mm
✔ Sash clearance: 28, 23 and 10 mm
✔ Locking mechanism prepared for profile cylinder installation
✔ Made from high-quality steel, cast zinc and aluminium alloys
✔ Corrosion protection through galvanised, passivated or anodised finishing
✔ Available in standard visible finishes such as silver anodised, bronze HS anodised and dark brown anodised
