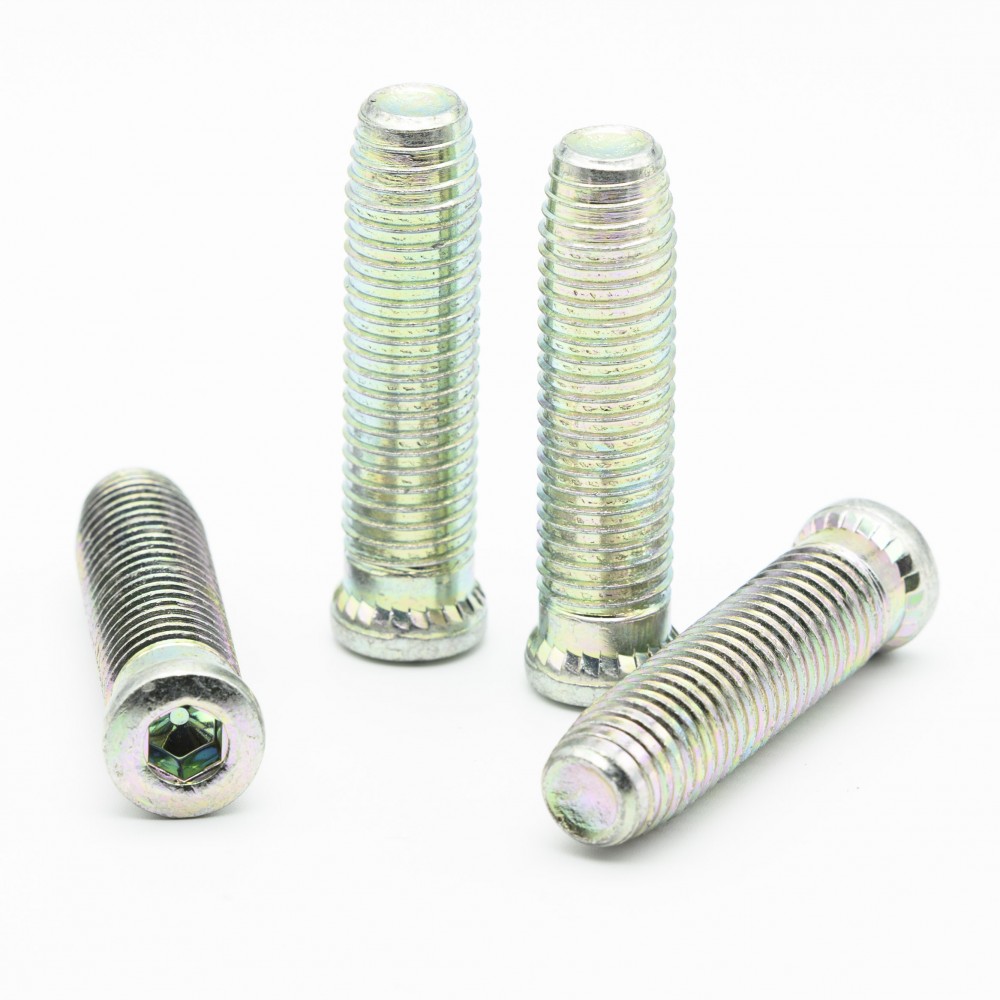

FAPIM ASTENING KIT FOR LOIRA+ HINGES

https://besa-sloten.be/web/image/product.template/6724/image_1920?unique=044ec29
(0 beoordeling)
7.4 EUR 7.4

8.95 € 8.95 €

7.40 € 7.40 € excl. VAT

Stock: 20.00 Units
Location(s): M/M1-C2.2a

7.40 € VAT Excluded

PRICE ON REQUEST

  • Type
  • Number of wings
  • Diameter Ø (mm)
  • Material
  • Length (mm)

Deze combinatie bestaat niet.

CONTACT US FOR YOUR PRICE
Type: Accessories
Diameter Ø (mm): 12
Material: Steel


Article number: 6603AA_Z5
Barcode: 8059012023721

These fastening kits are engineered for secure and long-lasting installation of LOIRA+ hinges on thermally broken aluminium profiles. They ensure optimal anchoring without compromising the insulation integrity of the door profile.

Available in six variants depending on:

  • Hinge type: two-leaf or three-leaf LOIRA+
  • Screw length: 51 mm, 61 mm, or 77 mm – depending on profile thickness

2-blade LOIRA+ hinge

3-blade LOIRA+ hinge

6603

Length 51 mm

6604

Length 61 mm

6605

Length 77 mm

  1. Technical drawing for attachment kit 6603AA for LOIRA+ 2-piece hinge length 51mm from FAPIM:
  2. Technical drawing for attachment kit 6604AA for LOIRA+ 2-piece hinge length 61mm from FAPIM:
  3. Technical drawing for attachment kit 6605AA for LOIRA+ 2-piece hinge length 77mm from FAPIM:
  4. Technical drawing for attachment kit 6603BA for LOIRA+ 3-piece hinge length 51mm from FAPIM:
  5. Technical drawing for fastening kit 6604BA for LOIRA+ 3-piece hinge length 61mm from FAPIM:
  6. Technical drawing for fastening kit 6605BA for LOIRA+ 3-piece hinge length 77mm from FAPIM:
  7. User guide for LOIRA+ 2-piece hinge from FAPIM:
  8. User guide for LOIRA+ 3-piece hinge from FAPIM:
  9. Brochure for LOIRA+ hinge:
  10. Catalogue for LOIRA+ hinge:
  11. Declaration of performance:
  12. Certification of performance resistance (CSI-CERT): ​

Loira+ two-wing hinge assembly


Loira+ three-wing hinge assembly


​
